WELDING GENERATOR

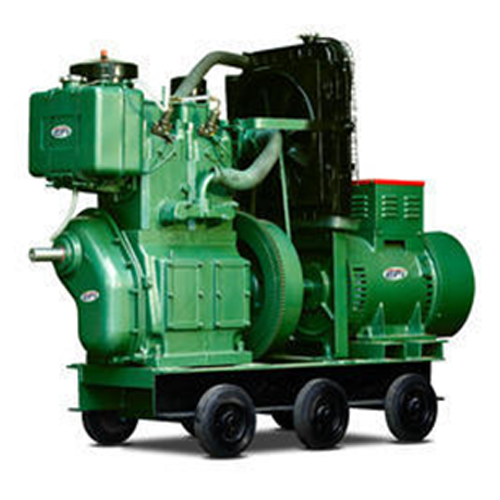

Diesel Welding Generator
300 AMPS.
Single Cylinder
Water / Air Cooled
Run 2.5 To 4.0 mm
Electrode
(12 To 8 No)

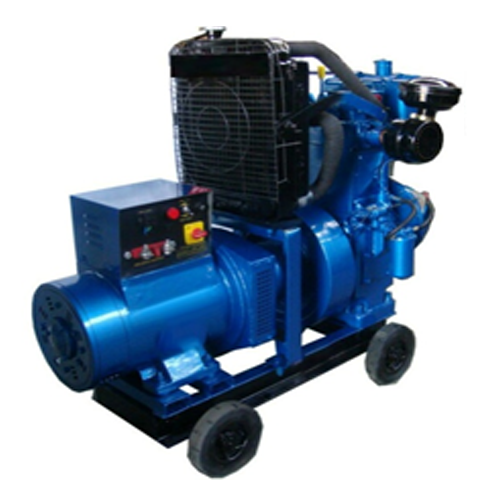

Diesel Welding Generator
400 Amps.
Double Cylinder
Water / Air Cooled
Run 2.5 To 5.0 mm
Electrode
(12 To 6 No)

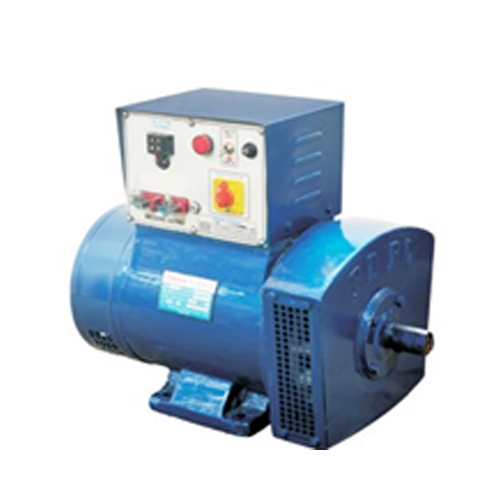

Portable Welding Alternator
300 Amps To 400 Amps
Run 2.5 To 5.0 mm
Electrode
(12 To 6 No)

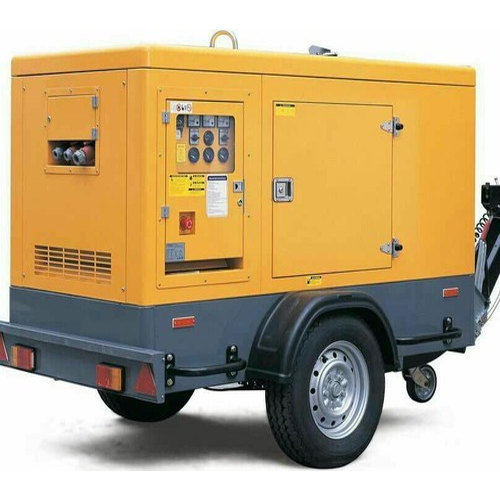

Diesel Silent Welding Generator
Trailer Mounted
250 Amps To 400 Amps
Water Cooled / Air Cooled
Run 12 No.- 6 No.
Electrode
( 2.5 To 5.0 mm)

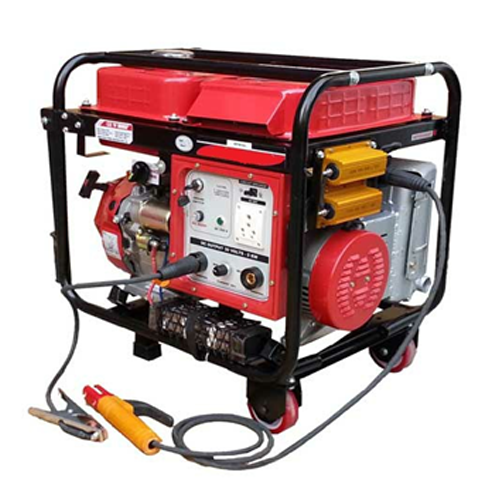

Portable Handy Petrol & Diesel Welding Generator
150 Amps To 350 Amps.
Air Cooled
Run 2.5 To 4.0 mm
Electrode
(12 To 8 No)

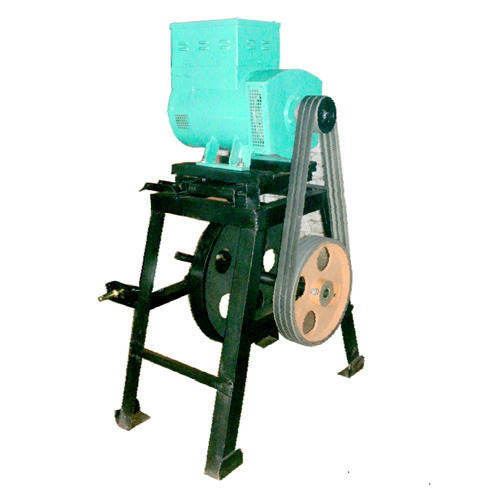

Tractor P.T.O Type
Welding Alternators
250 Amps. - 400 Amps.
Run 12 No.- 6 No.
Electrode
( 2.5 To 5.0 mm)
| AC WELDING GENERATOR | ||||
|---|---|---|---|---|
| AMP. | WELDING
ROD (NO./ MM) |
DOMESTIC SUPPLY |
H.P. | CYLINDER |
| 250 | 8 to 12 (2.5 to 4.0) | 2.5 KW / 1230 V/60 V | 12 HP | SINGLE |
| 300 | 8 to 12 (2.5 to 4.0) | 5.0 KW / 1230 V/60 V | 14 HP | SINGLE |
| 400 | 6 to 12 (2.5 to 5.0) | 4.0 KW / 1230 V/70 V | 24 HP | DOUBLE |
| TECHNICAL DATA | |
|---|---|
| WIRE | 100 % Copper |
| INSULATION | H Class |
| ENGINE MAKE | Kirloskar Type |
| RPM | 1500 |
| FUEL | Diesel |
| DIESEL CONS. | 132 gm/hp-hr |
| START | Handle start |
| SELF START | Optional |
| LUB. OIL | 3.5 Itr (SAE 30/40) |
| AC CURRENT WELDING ALTERNATOR | ||
|---|---|---|
| AMP. | WELDING
ROD (NO./ MM) |
DOMESTIC SUPPLY |
| 250 | 8 to 12 (2.5 to 4.0) | 2.5 KW/230 V |
| 300 | 8 to 12 (2.5 to 4.0) | 5.0 KW/230 V |
| 400 | 6 to 12 (2.5 to 5.0) | 4.0 KW/230 V |

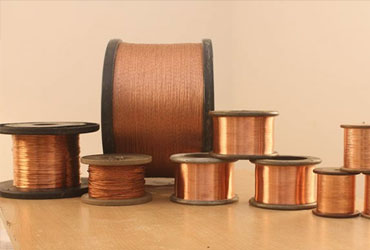

100% PURE COPPER

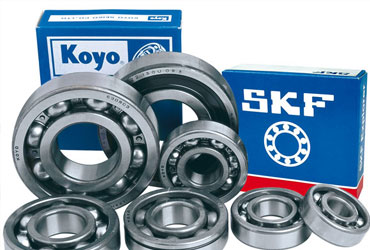

SKF BEARING
